Overview
Utility-Grade Containerized Energy Storage Architecture
High-Density 20ft/40ft Modular Enclosure Design
Engineered in standardized 20ft and 40ft high-cube ISO footprints, our containerized energy storage solution delivers high power density, plug-and-play installation, and harsh-environment durability.
| Performance Parameter | Operational Baseline |
|---|---|
| Containerized Capacity | 5MWh per 40ft modular unit |
| System Availability | 99.9% guaranteed uptime |
| Service Cycle Life | ≥6,000 cycles at standard DOD |
| Switchover Speed | <10ms automatic response |
| Enclosure Footprint | Standardized 20ft / 40ft modular enclosure |
Key Architectural Capabilities
- Substation Grid Relief: Direct connection through our battery energy storage system bess containers substation interface eliminates localized transmission bottlenecks and defers upgrade costs.
- Ultra-Fast Grid Synchronization: A <10ms automatic switchover speed provides instant frequency response, dynamic voltage support, and uninterrupted backup during sudden line faults.
- Optimized Land Footprint: Maximized pack layout achieves 5MWh storage capacity in a single enclosure, drastically cutting required site acreage and civil prep costs.
- Factory-Integrated Reliability: Pre-configured, pre-tested containerized architecture ensures low installation risk and continuous 99.9% availability for critical utility applications.

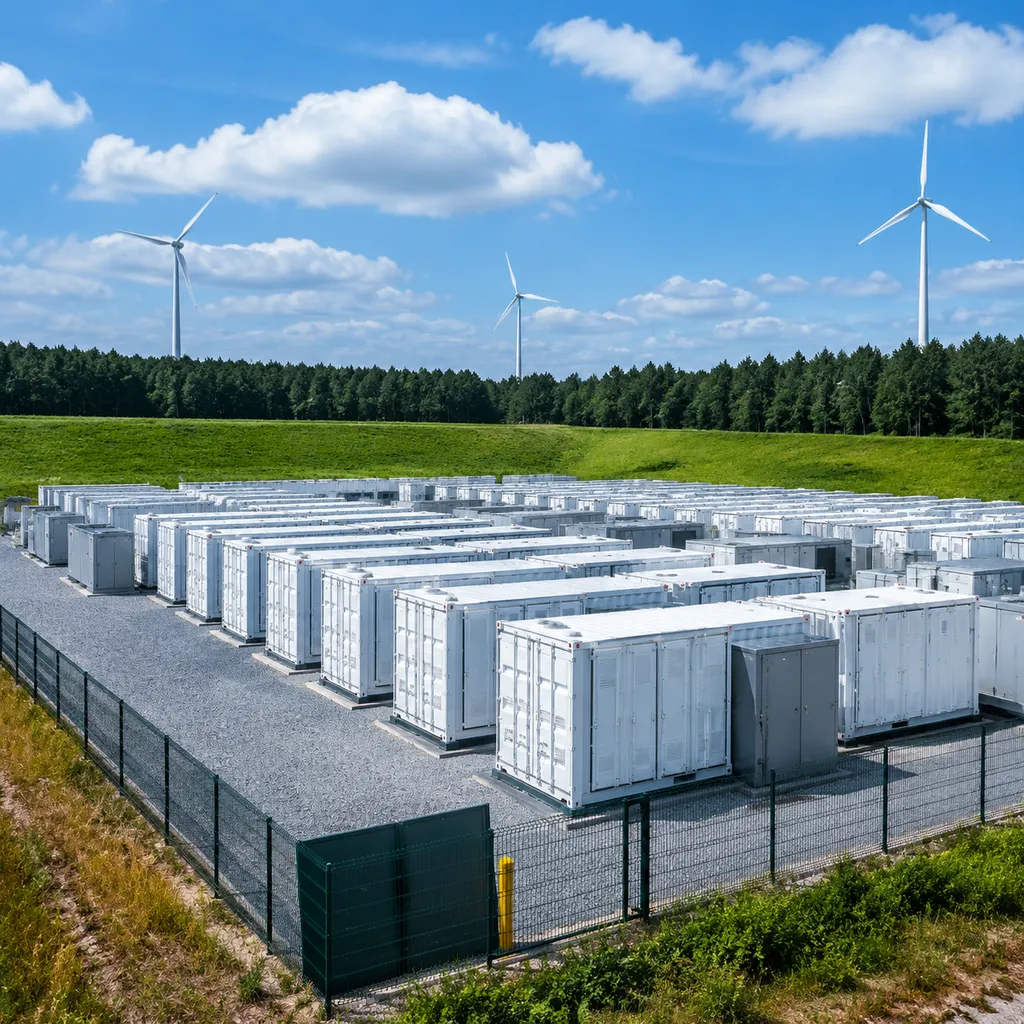

Advanced Technical Specifications & Integrated Systems
Core System Specifications
| Subsystem | Core Technical Metric | Operational Benefit |
|---|---|---|
| Battery Chemistry | Grade-A LiFePO4 with active balancing | Extended cycle endurance and high thermal limits |
| Thermal System | Smart liquid cooling ($Delta T$ variance <2.5°C) | Uniform heat distribution during rapid charge/discharge |
| Control & Software | 3-Tier BMS & Cloud-Edge EMS | Real-time SOC/SOH telemetry with open SCADA dispatch |
| Power Conversion | Bi-directional PCS inverter units | Dual grid-following and grid-forming capabilities |
Subsystem Hardware & Intelligence
- Premium LiFePO4 Chemistry & Cell Engineering: Our high-density battery racks feature active cell-to-cell balancing and prolonged thermal endurance. To understand how cell balance impacts system longevity, explore our guide on lithium iron phosphate battery system safety and cycle life.

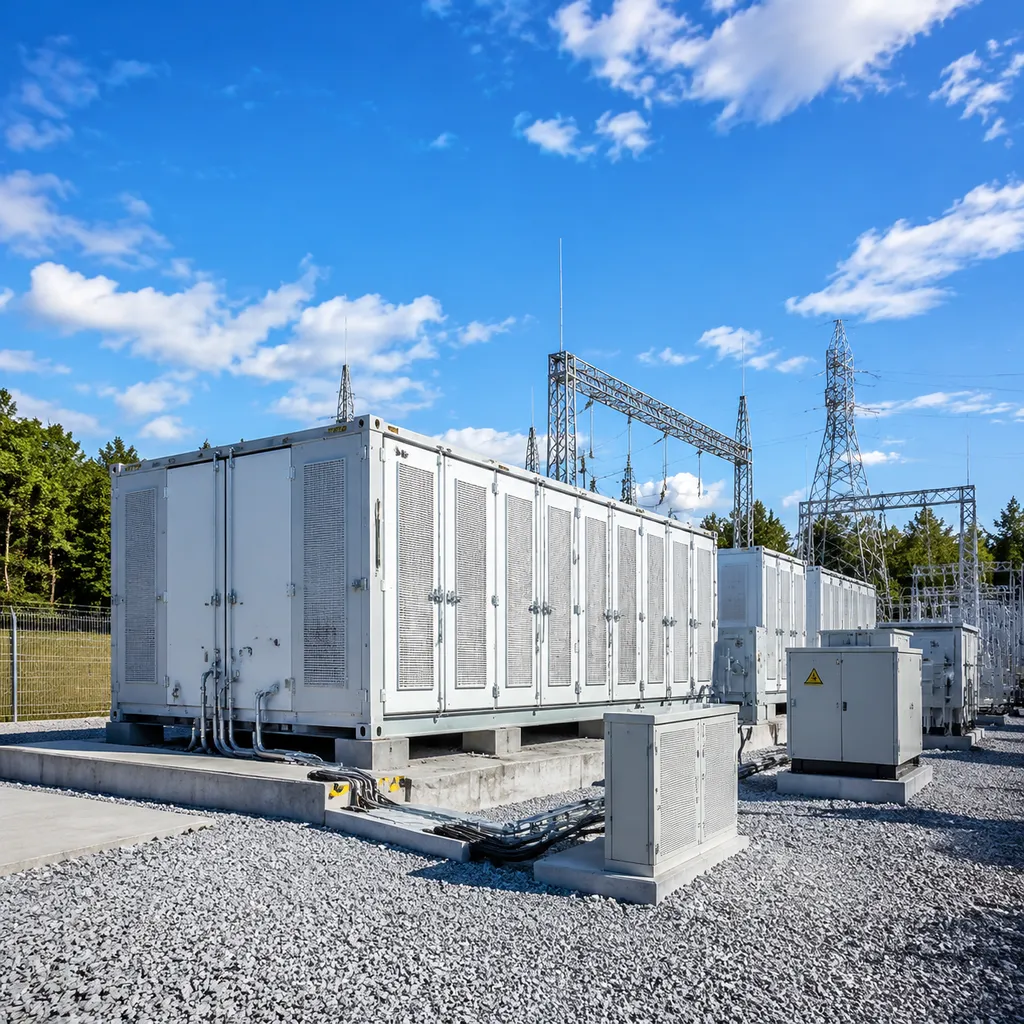

- Liquid-Cooled BESS Enclosure: An active liquid thermal management system maintains uniform temperatures across all packs, keeping cell-to-cell variance strictly under 2.5°C even during sustained full-power discharge.
- 3-Tier BMS & AI Cloud-Edge EMS: Full-stack battery management system (BMS) telemetry delivers real-time cell-level SOC and SOH diagnostics. Open protocol interfaces—including Modbus TCP, CAN, and SCADA APIs—allow rapid integration into municipal and private power platforms.
- Bi-directional Power Conversion System (PCS): Built on high-efficiency grid-tied inverter synchronization, our bi-directional PCS seamlessly toggles between grid-following and grid-forming modes. For detailed structural layouts, review our energy storage system architecture and design guide to optimize deployment in battery energy storage system bess containers substation installations.
Substation Energy Storage Integration & Grid Applications
We engineer battery energy storage system BESS containers for grid and substation integration to directly resolve network bottlenecks, thermal loading limits, and power quality degradation. By deploying storage assets at critical utility nodes, network operators build localized resilience while avoiding capital-intensive infrastructure rebuilds.
Substation Transformer Upgrade Deferral
Upgrading high-voltage transformers to handle transient peak demand requires massive capital outlays and long procurement timelines. We solve this challenge using dynamic substation transformer peak shaving:
Capex Reduction: Defers or entirely eliminates physical transformer upgrades, cutting grid modernization capex by up to 50%.
Thermal Stress Relief: Automatically shifts discharge cycles to cover heavy-demand windows, preventing high-temperature stress on aging substation assets.
Dynamic Grid Stabilization & Frequency Regulation
Maintaining steady grid frequency requires immediate, precise power injection. Our turnkey utility-scale storage systems deliver sub-second response times to preserve network equilibrium:
Millisecond Power Dispatch: Supplies instant active and reactive power to arrest sudden grid frequency dips.
Voltage Support: Dynamically absorbs or injects reactive power to stabilize localized voltage swings across rural or congested distribution feeders.
Renewable Integration & Curtailment Mitigation
Intermittent generation from utility-scale solar and wind assets often overloads distribution lines, causing generation curtailment. Integrating our battery energy storage system BESS containers at the substation levels out these generation spikes:
Output Smoothing: Controls power ramp rates during rapid cloud movement or fluctuating wind speeds.
Curtailment Recovery: Stores stranded clean energy during off-peak hours and dispatches it during peak price windows using utility-scale battery storage containers for solar and wind.
Microgrid Islanding & Black Start
During main transmission line outages, our systems transition to act as the primary grid-forming power source:
<10ms Automatic Switchover: Isolates upstream faults instantly to sustain uninterruptible power for critical substation loads.
Black Start Restoration: Delivers high-surge energization capacity to restart tripped transformers and restore power without needing external grid voltage.
Multi-Layered Safety Architecture
We engineer our battery energy storage system bess container grid enclosures with multi-layered mitigation controls to stop thermal hazards at the cell level.
- Targeted Fire Suppression Systems: Combines ultra-sensitive off-gas detection with localized pack-level aerosol and gas-liquid fire suppression to halt thermal propagation instantly.
- Structural & Environmental Protection: Built inside heavy-duty NEMA 3R / IP55 rated outdoor enclosures engineered for harsh weather, seismic resilience, and full thermal containment.
- Comprehensive Risk Mitigation: Our integrated LFP safety and thermal enclosure designs isolate electrical hazards to ensure zero operational impact on surrounding substation hardware.

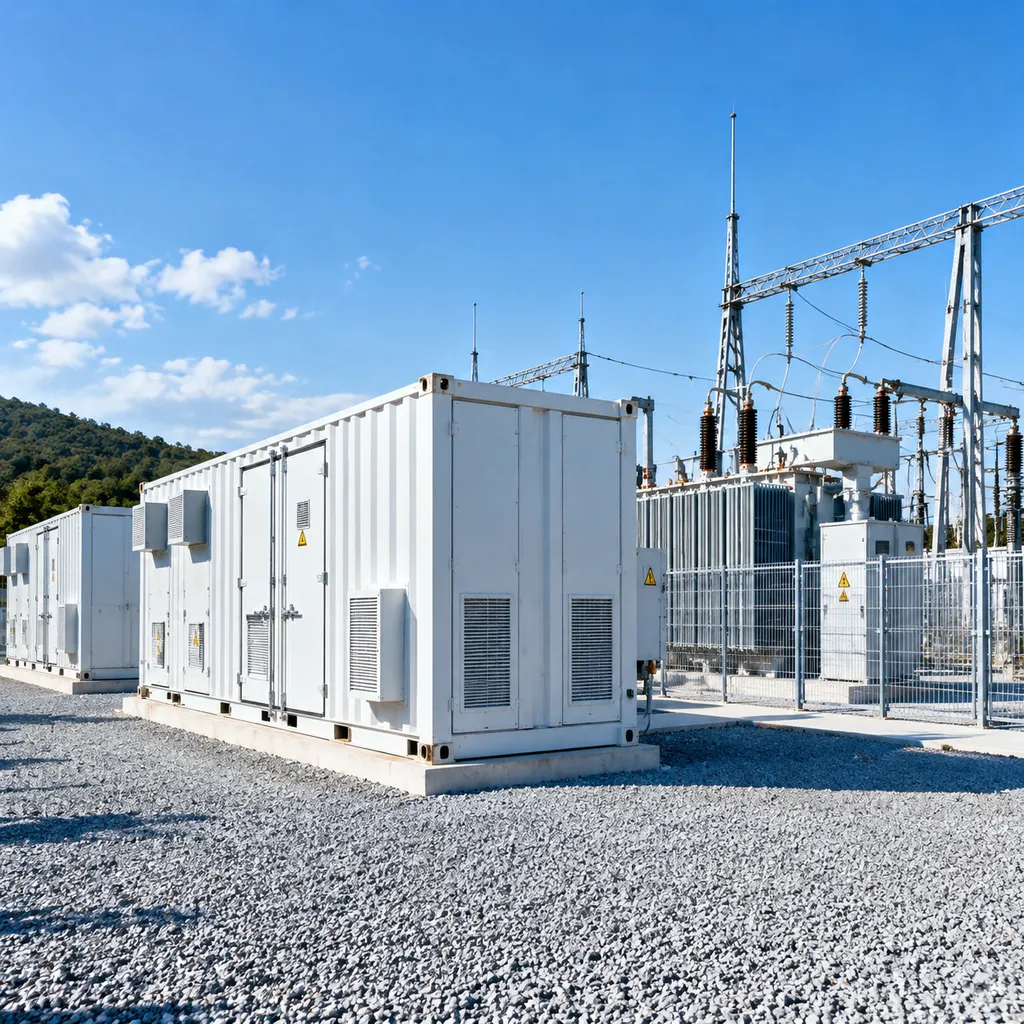

International Certifications & Global Compliance
To streamline site permitting, insurance approvals, and grid interconnection for every battery energy storage system bess containers substation installation, our equipment undergoes rigorous independent testing to meet global standards:
| Certification | Standard Focus & Operational Scope |
|---|---|
| UL 9540A / UL 9540 | Fire propagation testing for thermal runaway containment in grid storage |
| UL 1973 | Battery cell, module, and pack safety standards for stationary applications |
| IEC 62619 | Industrial lithium-ion safety and operational integrity requirements |
| CE / UN 38.3 | Hazardous transport safety compliance and global grid conformity |
| ISO 9001 | System-wide quality management and operational auditing |
Turnkey Battery Energy Storage System BESS Container Grid Deployment
We streamline the complete system lifecycle from initial feasibility to long-term operations, delivering a fully integrated utility-scale battery container ready for immediate grid connection.
6-Phase Turnkey Execution Workflow
- Site Assessment & Load Modeling: Detailed load profile analysis and interconnect capacity modeling.
- System Engineering: Precision integration tailored to specific substation voltage and control requirements.
- Factory Acceptance Testing (FAT): Rigorous pre-shipment full-load testing and BMS verification.
- Civil Anchorage & Installation: Rapid placement, structural mounting, and cable routing on site.
- Grid Synchronization: Seamless commissioning, protection relay testing, and utility intertie approval.
- 24/7 Global O&M: Real-time remote telemetry monitoring, predictive maintenance, and cloud firmware updates.
ROI Targets for Substation Energy Storage Integration
Deploying a battery energy storage system BESS containers substation asset optimizes capital expenditure while generating reliable revenue streams across utility and commercial applications.
- 30%+ Operational Cost Reduction: Shift heavy loads to low-cost hours while tapping into ancillary service markets.
- 35% Peak Demand Reduction: Flatten substation load curves and bypass expensive transformer upgrades. Uncover how strategic peak shaving reduces energy costs and improves grid asset utilization.
- 3 to 5 Year Payback: High round-trip efficiency (RTE) combined with long LFP cycle life maximizes project net present value (NPV).
Frequently Asked Questions About Substation & Grid BESS Containers
What makes containerized BESS ideal for utility grid and substation upgrades?
Our modular containerized energy storage systems deliver a pre-integrated footprint engineered for rapid deployment. Deploying a battery energy storage system BESS containers substation solution allows utilities to solve infrastructure bottleneck challenges directly:
- Defer Capex Upgrades: Bypasses costly substation transformer and feeder line replacements by up to 50% through targeted peak shaving.
- Maximize Site Footprint: Standardized 20ft and 40ft outdoor enclosures fit directly onto existing substation concrete pads.
- Enhance Operational Reliability: Delivers instant frequency response and dynamic voltage support to stabilize vulnerable grid nodes.
How does active liquid cooling impact cycle life and thermal management in a 5MWh container?
Active liquid thermal management maintains a tight cell-to-cell temperature variance of <2.5°C during aggressive charge and discharge cycles. In our high-density 20ft battery energy storage system 5MWh liquid cooled enclosure, this provides:
- Extended System Life: Prevents localized cell degradation, securing a extended cycle life exceeding 6,000 cycles.
- Optimal Energy Density: Dissipates heat up to 30% more effectively than forced-air systems, enabling compact 5MWh capacity configurations.
- Safety Isolation: Prevents thermal runaway propagation across battery packs by maintaining consistent operating temperatures.
What key safety standards apply to high-density containerized energy storage systems?
We engineer every battery energy storage system BESS container grid asset to meet rigorous international safety and compliance benchmarks:
- UL 9540A: Validates off-gas detection and confirms zero thermal runaway fire propagation at the cell, module, and container level.
- UL 1973: Certifies the structural, electrical, and environmental integrity of stationary battery packs.
- IEC 62619 & CE: Ensures high-voltage electrical safety and electromagnetic compatibility for grid connections.
- UN 38.3: Verifies safe transport stability under extreme physical shock and thermal stress.
How fast can a containerized BESS switch over during a grid interruption or black start condition?
Our bidirectional Power Conversion System (PCS) executes sub-10ms automatic switchover during power outages and grid fault events:
- Instant Microgrid Islanding: Isolates the site from the main grid within <10ms to safeguard critical substation loads without voltage drops.
- Grid-Forming Operation: Synthesizes precise voltage and frequency baselines independent of central utility power.
- Black Start Capability: Supplies full power output immediately from standby to re-energize down substation transformers without requiring external power feeds.
